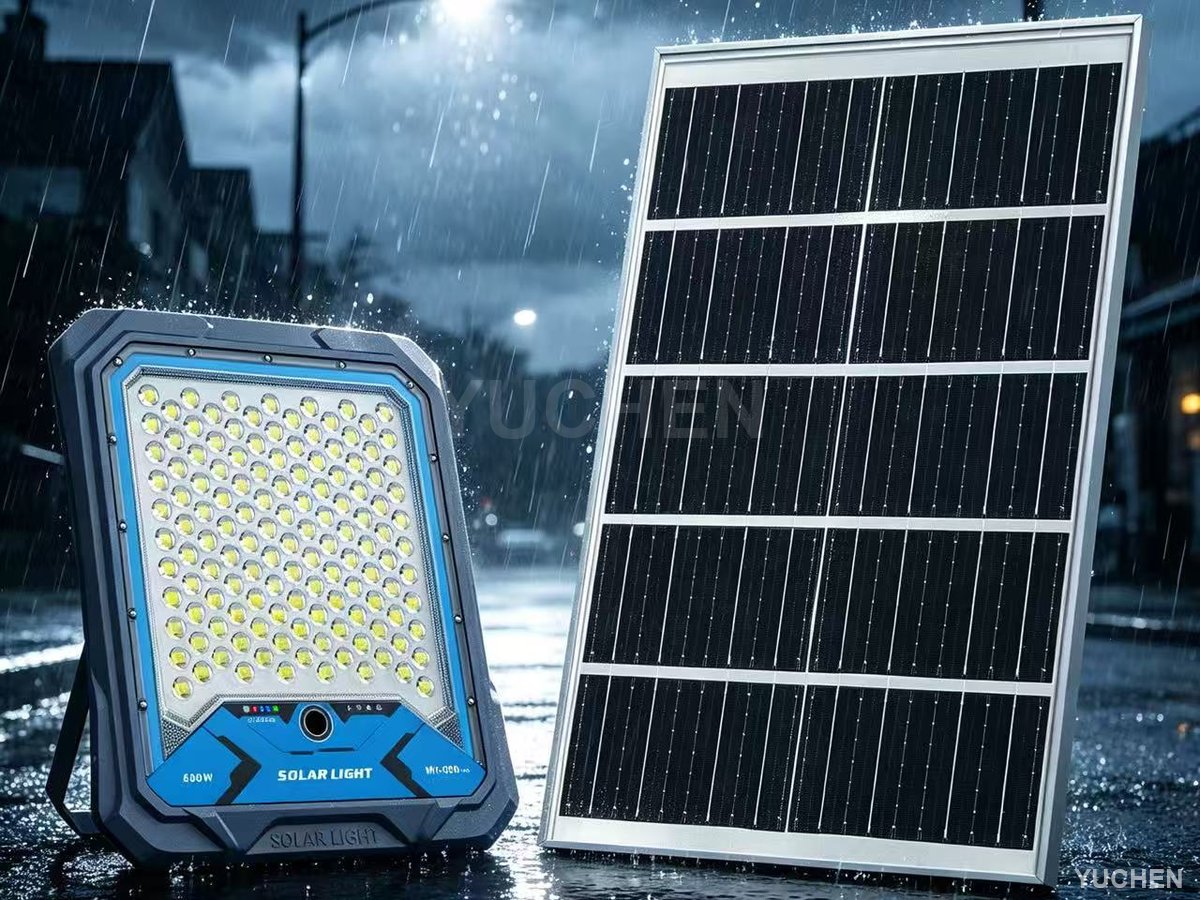

M1 Series — a floodlight that keeps watch
Solar lighting and a 4G security camera in one IP66 body. Five models from 200W to 1500W — verified specifications, complete export documents, FOB terms.
- 【Battery】Brand-new A-grade LiFePO4, 30 Ah
- 【Cycle life】2,000 charge cycles
- 【Solar panel】A-grade mono 5V / 35W (450×350 mm)
- 【LEDs】68 pcs SMD5054, 1520 lm
- 【Camera】4MP (1440P), night vision, human detection
- 【Connection】4G (standard SIM) or WiFi version
- 【Body】275×235×56 mm, IP66, die-cast
- 【Control】Light control + remote control (radar sensor optional)
- 【Warranty】2 years
- 【Battery】Brand-new A-grade LiFePO4, 36 Ah
- 【Cycle life】2,000 charge cycles
- 【Solar panel】A-grade mono 5V / 45W (500×400 mm)
- 【LEDs】101 pcs SMD5054, 2420 lm
- 【Camera】4MP (1440P), night vision, human detection
- 【Connection】4G (standard SIM) or WiFi version
- 【Body】IP66, die-cast
- 【Control】Light control + remote control (radar sensor optional)
- 【Warranty】2 years
- 【Battery】Brand-new A-grade LiFePO4, 45 Ah
- 【Cycle life】2,000 charge cycles
- 【Solar panel】A-grade mono 5V / 50W (550×400 mm)
- 【LEDs】132 pcs SMD5054, 3042 lm
- 【Camera】4MP (1440P), night vision, human detection
- 【Connection】4G (standard SIM) or WiFi version
- 【Body】365×310×64 mm, IP66, die-cast
- 【Control】Light control + remote control (radar sensor optional)
- 【Warranty】2 years
- 【Battery】Brand-new A-grade LiFePO4, 54 Ah
- 【Cycle life】2,000 charge cycles
- 【Solar panel】A-grade mono 5V / 55W (600×400 mm)
- 【LEDs】175 pcs SMD5054, 3640 lm
- 【Camera】4MP (1440P), night vision, human detection
- 【Connection】4G (standard SIM) or WiFi version
- 【Body】410×350×68 mm, IP66, die-cast
- 【Control】Light control + remote control (radar sensor optional)
- 【Warranty】2 years
- 【Battery】Brand-new A-grade LiFePO4, 60 Ah
- 【Cycle life】2,000 charge cycles
- 【Solar panel】A-grade mono 5V / 60W (670×445 mm)
- 【LEDs】175 pcs SMD5054, 4210 lm
- 【Camera】4MP (1440P), night vision, human detection
- 【Connection】4G (standard SIM) or WiFi version
- 【Body】410×350×68 mm, IP66, die-cast
- 【Control】Light control + remote control (radar sensor optional)
- 【Warranty】2 years
Every unit ships with remote control, U-bracket, 3 m waterproof cable and screws — ready to install.
One light, two jobs
Lighting + security
A 4MP camera built into the floodlight body. No separate CCTV purchase, no extra wiring.
4G without subscription
Standard SIM slot — your customer's local data SIM, no cloud fees, no monthly cost.
Radar sensor (optional)
With the radar version: full brightness on motion, dim when idle. Saves battery through the whole night.
A-grade LiFePO4
Brand-new cells rated for 2,000 cycles. 18+ hours of discharge on a full charge.
IP66 die-cast body
Rain, dust and heat proof — built for outdoor installs all year round.
Full kit in the box
Lamp, panel, remote, U-bracket, 3 m cable and screws. Open the carton and install.
Real monitoring, from anywhere

Your customers check the yard from their phone — live view, night vision and motion alerts, with no subscription and no cloud account. That is the feature your customers will notice first.
- 4MP (1440P) HD video, day and night
- Human detection with push alerts to the phone
- Live view and playback in the app
- Works on a 4G data SIM or WiFi
- No cloud subscription — video stays local
Want to see it working? Ask us for a live demo video on WhatsApp.
Five sizes, one platform
| Model | Battery (LiFePO4) | Panel | LEDs | Brightness | Per carton | Carton size (cm) | GW (kg) |
|---|---|---|---|---|---|---|---|
| 200W PRO | 30Ah | 35W, 450×350 | 68 | 1520 lm | 7 | 65×47.5×38.5 | 21.8 |
| 400W PRO | 36Ah | 45W, 500×400 | 101 | 2420 lm | 6 | 62×52.5×43.5 | 26.9 |
| 600W PRO | 45Ah | 50W, 550×400 | 132 | 3042 lm | 5 | 58×52×43.5 | 26.1 |
| 1000W PRO | 54Ah | 55W, 600×400 | 175 | 3640 lm | 3 | 63×33.5×43.5 | 17.6 |
| 1500W PRO | 60Ah | 60W, 670×445 | 175 | 4210 lm | 2 | 70×23×48 | 14.2 |
| Colour temperature | 6500–7000K, cool white |
|---|---|
| Charging time | 8 hours of sunlight |
| Discharge time | 18 hours+ |
| Camera | 4MP (1440P), night vision, human detection |
| Connection | 4G (standard SIM) or WiFi version |
| Certifications | CE, RoHS |
| Warranty | 2 years, spare parts shipped with bulk orders |
In the box
Floodlight, solar panel, remote control, U-bracket, 3 m waterproof cable (XT60 plug) and expansion screws.
Homes, farms and businesses
Every batch passes aging and charge tests

Aging test racks
Units run on aging racks before packing — early failures never leave the factory.

Burn-in verification
Continuous burn-in confirms drivers, batteries and LEDs hold spec over time.

Charge / discharge test
Every battery batch is cycle-tested so the rated 18+ hours of light is real.
Common questions
What is the lead time?
10–15 days of production for bulk orders. Samples ship in 7–10 working days.
What are the payment terms?
T/T: 30% deposit, 70% against B/L copy. Other terms can be discussed for repeat orders.
Can I order a sample first?
Yes. A sample fee applies and is refunded with your first bulk order.
Can I mix models in one container?
Yes. Mixing our three series in one shipment is normal — you pay for one bill of lading, not three.
What export documents do you provide?
Commercial invoice, packing list, certificate of origin, plus UN38.3 and SDS for the lithium batteries.
How are the batteries shipped?
LiFePO4 cells travel with the UN38.3 test report and SDS your clearing agent will ask for. We tell your forwarder the packing details in advance.
What if something fails in warranty?
2-year warranty. Free spare parts ship with bulk orders, and failed components are replaced within warranty.
Does the camera work with a local SIM card?
Yes. Standard SIM slot — 4G or WiFi version, pick whichever fits your market.
Can I put my own brand on the products?
Yes — OEM and ODM are supported: your logo, retail packaging and manual.
How fast do I get a quote?
Message us on WhatsApp or email with models and quantities. You get a written FOB quotation, with lead time and payment terms, within 24 hours.
Ready for prices?
Send the models and quantities you are considering. We reply with a written FOB quotation — including lead time and payment terms — within 24 hours.
