Die-cast aluminum series — simple, tough and dependable
Classic die-cast bodies with adjustable solar panels, 32650 LiFePO4 batteries and timed remote control. Four models from 40W to 200W for homes, courtyards and small commercial spaces.
- 【Battery】32650 LiFePO4, 5 Ah (3.2V)
- 【Solar panel】6V / 8W, adjustable angle
- 【LEDs】76 pcs 5730
- 【Body】232×185×53 mm, die-cast aluminum, IP66
- 【Control】Timed remote control + dusk-to-dawn light sensor
- 【Cable】5 m waterproof cable
- 【Install】U-bracket + expansion screws, wall or pole
- 【Warranty】2 years
- 【Battery】32650 LiFePO4, 8 Ah (3.2V)
- 【Solar panel】6V / 10W, adjustable angle
- 【LEDs】92 pcs 5730
- 【Body】256×208×65 mm, die-cast aluminum, IP66
- 【Control】Timed remote control + dusk-to-dawn light sensor
- 【Cable】5 m waterproof cable
- 【Install】U-bracket + expansion screws, wall or pole
- 【Warranty】2 years
- 【Battery】32650 LiFePO4, 15 Ah (3.2V)
- 【Solar panel】6V / 20W, adjustable angle
- 【LEDs】140 pcs 5730
- 【Body】305×250×75 mm, die-cast aluminum, IP66
- 【Control】Timed remote control + dusk-to-dawn light sensor
- 【Cable】5 m waterproof cable
- 【Install】U-bracket + expansion screws, wall or pole
- 【Warranty】2 years
- 【Battery】32650 LiFePO4, 20 Ah (3.2V)
- 【Solar panel】6V / 25W (350×530 mm), adjustable angle
- 【LEDs】273 pcs 5730
- 【Body】357×276×80 mm, die-cast aluminum, IP66
- 【Control】Timed remote control + dusk-to-dawn light sensor
- 【Cable】5 m waterproof cable
- 【Install】U-bracket + expansion screws, wall or pole
- 【Warranty】2 years
Every set ships with solar panel, remote control, U-bracket, 5 m waterproof cable and expansion screws.
Everything you need, nothing you don’t
Adjustable solar panel
Tilt the panel to catch the best sunlight on any wall or roof angle.
Die-cast aluminum body
Heavy-duty cast housing with IP66 sealing — rain, dust and heat proof.
Timed remote control
Brightness up/down, auto mode and 3H / 5H timers from the couch.
32650 LiFePO4 cells
Brand-new A-grade phosphate cells — stable output, long cycle life.
Dusk-to-dawn sensor
Auto on at dark, off at dawn. Zero attention needed from the user.
Everything in the box
Panel, remote, U-bracket, 5 m cable and screws. Install and done.

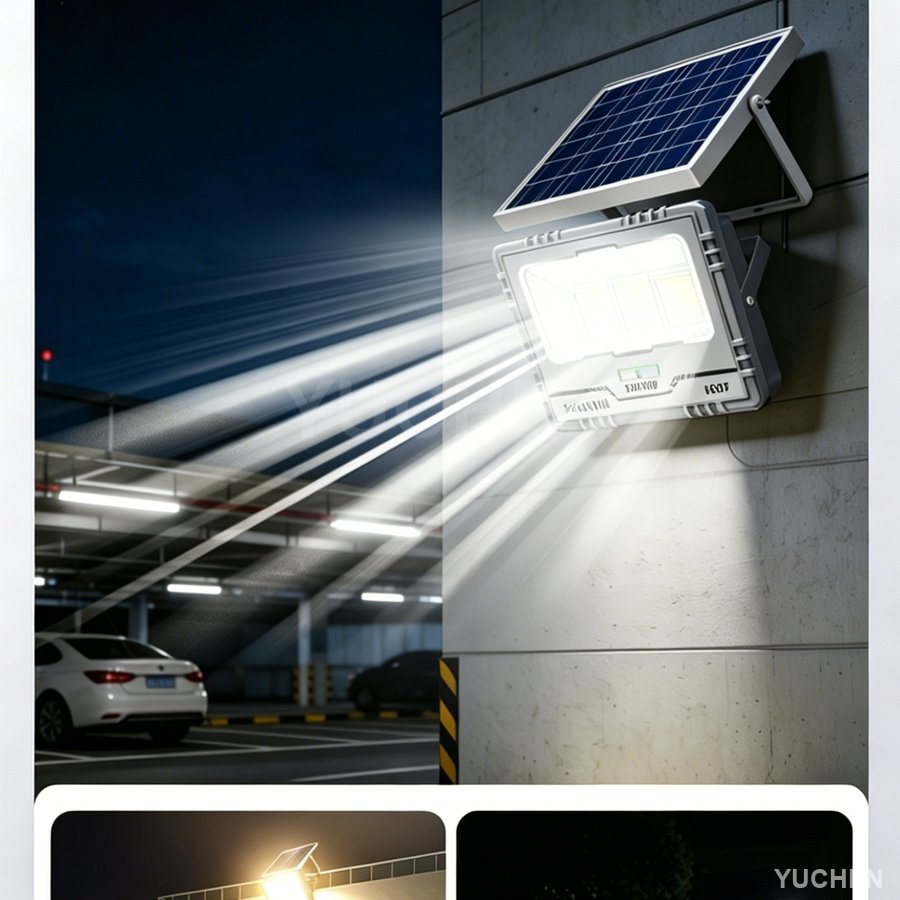

Set it once, forget it all season
The timed remote is why this series keeps selling: your customer picks 3 or 5 hours per night, sets brightness, and the light sensor handles the rest — every day, automatically.
- Turn on / off from a distance
- Brightness up and down
- Auto mode with dusk-to-dawn sensor
- 3-hour and 5-hour night timers
- 5 m waterproof cable between lamp and panel
Three steps to install: mark and drill, drive the screws, hang the light.
Four sizes, one platform
| Model | Battery (32650 LiFePO4) | Solar panel (6V) | LEDs (5730) | Lamp body (mm) |
|---|---|---|---|---|
| 40W | 5 Ah | 8 W | 76 pcs | 232×185×53 |
| 60W | 8 Ah | 10 W | 92 pcs | 256×208×65 |
| 100W | 15 Ah | 20 W | 140 pcs | 305×250×75 |
| 200W | 20 Ah | 25 W | 273 pcs | 357×276×80 |
| Colour temperature | Cool white |
|---|---|
| Charging time | 10 hours of sunlight |
| Lighting time | 10 hours |
| Control | Timed remote control + light sensor |
| Body | Die-cast aluminum, IP66 |
| Certifications | CE, RoHS |
| Warranty | 2 years, spare parts shipped with bulk orders |
Panel angle is adjustable
Loosen one knob and tilt the panel to face the sun — the same light works on a shaded wall, a north-facing facade or a sloped roof.
Courtyards, lanes and courts
Every batch passes aging and charge tests

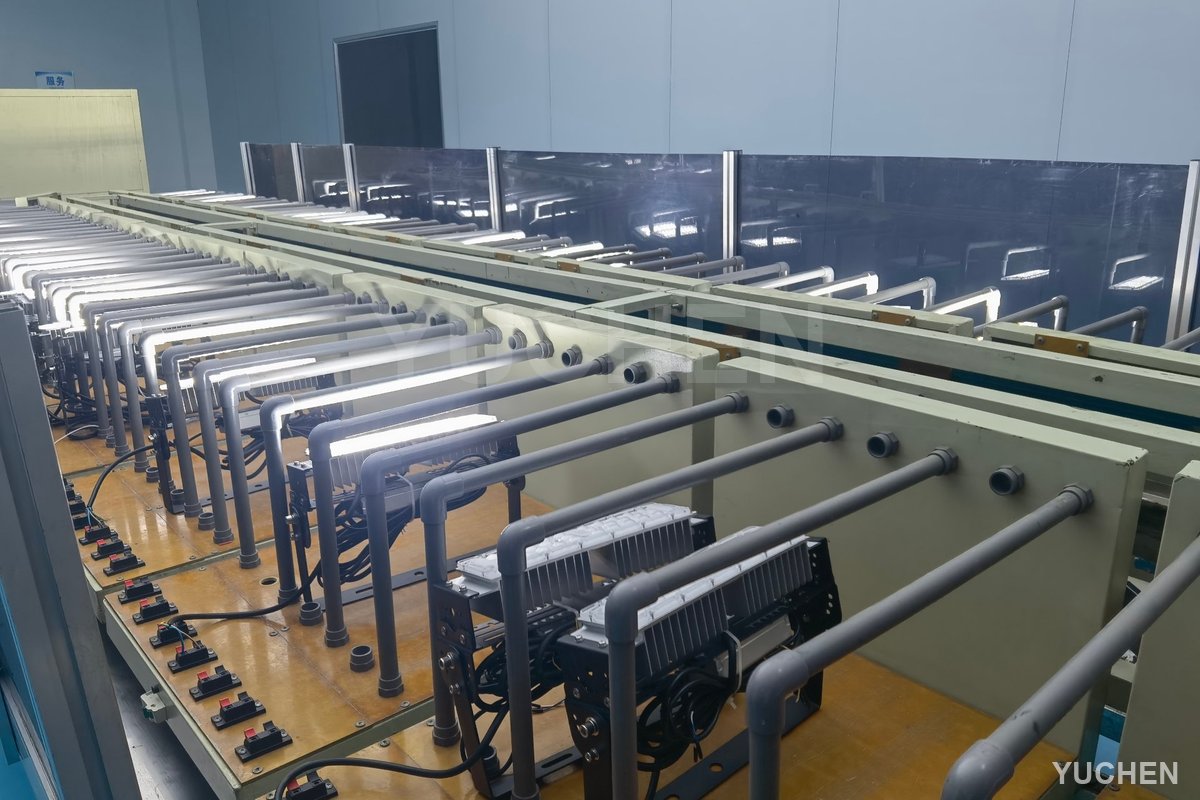

Aging test racks
Units run on aging racks before packing — early failures never leave the factory.

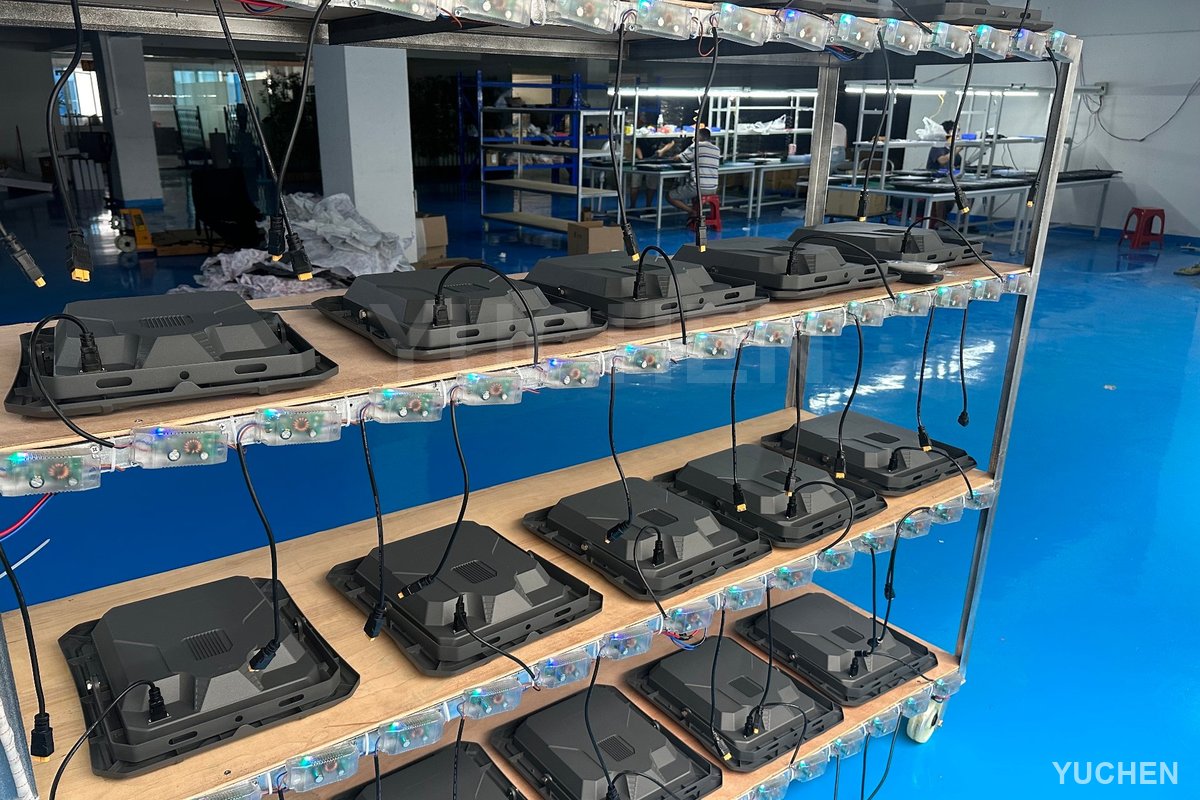

Burn-in verification
Continuous burn-in confirms batteries and LEDs hold spec over time.

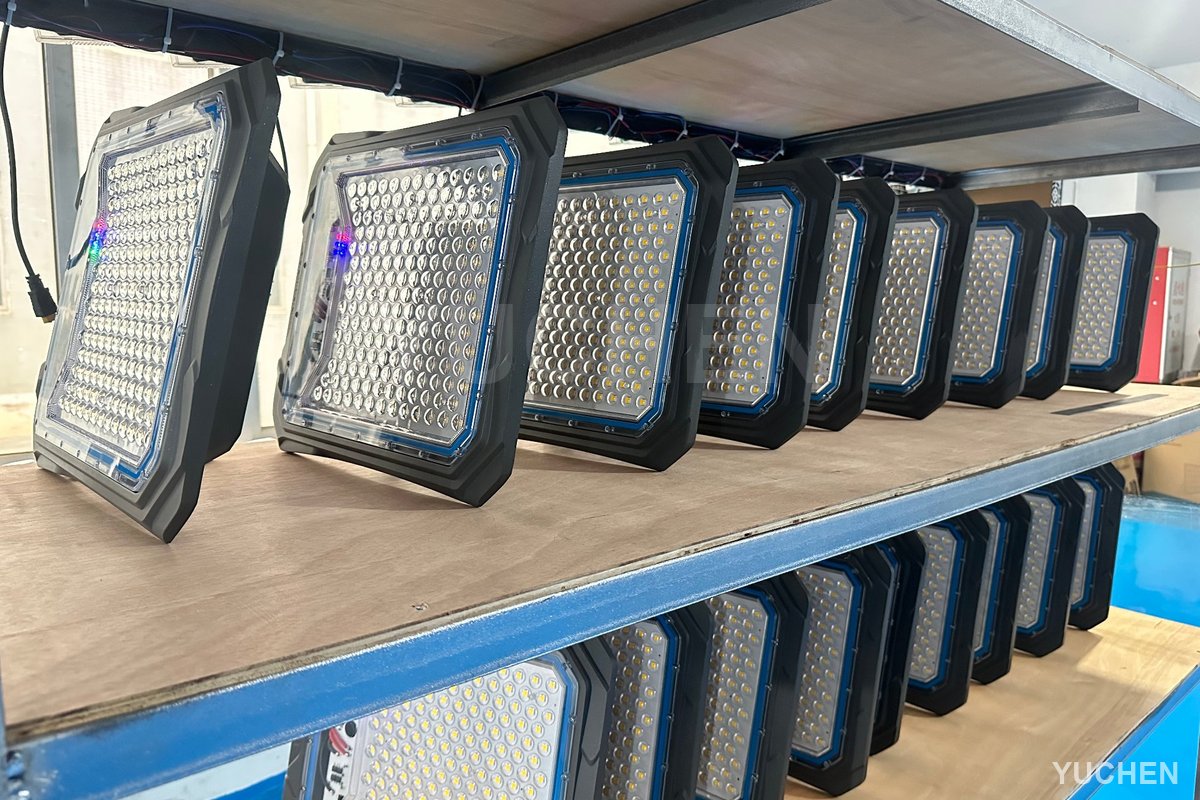

Charge / discharge test
Every battery batch is cycle-tested so the rated 10 hours of light is real.
Common questions
What is the lead time?
10–15 days of production for bulk orders. Samples ship in 7–10 working days.
What are the payment terms?
T/T: 30% deposit, 70% against B/L copy. Other terms can be discussed for repeat orders.
Can I order a sample first?
Yes. A sample fee applies and is refunded with your first bulk order.
What if something fails in warranty?
2-year warranty. Free spare parts ship with bulk orders, and failed components are replaced within warranty.
Ready for prices?
Send the models and quantities you are considering. We reply with a written FOB quotation — including lead time and payment terms — within 24 hours.
